Universal Radio Adapters

CAB-RAD-APX1

10 Pin MS Circular to APX6000 - APX8000








Data Sheet

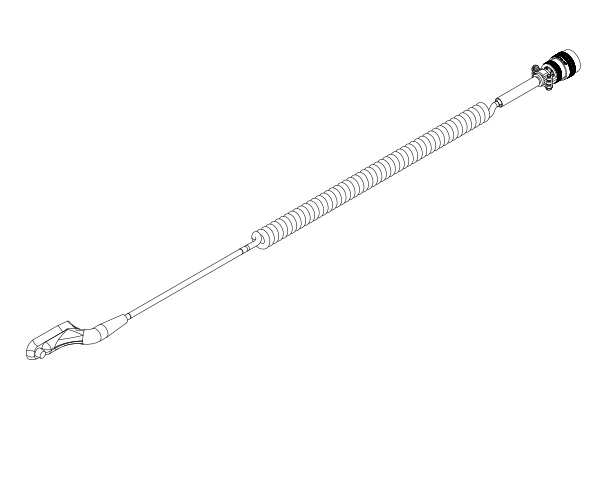

CAB-RAD-VP1

10 Pin MS Circular to VP5000 - VP8000

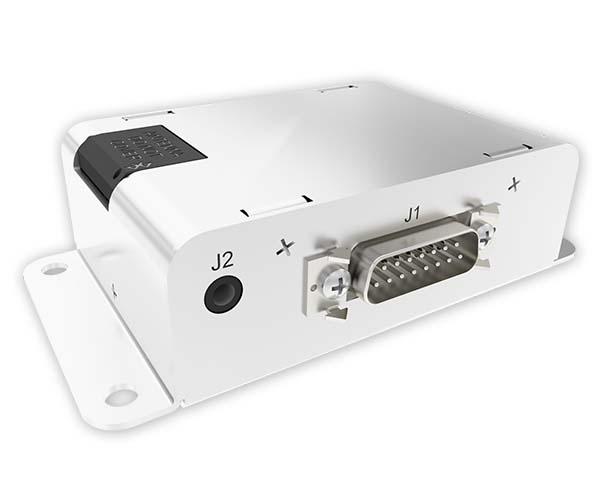

JA33-001

Universal Adapter - Bluetooth Transceiver

Mic Input: 0.02 to 0.6 Vrms


RX / Stereo Out: 0.10 to 6.0 Vrms into 600 ohms


Data Out: RS232 | Data Input: RS232


Bluetooth Profiles: A2DP (Music sink),


HFP1.5 (Hands Free) and SPP (serial port)


Weight: 0.33 lb. [0.15 kg] Max.


Power: 18 to 30Vdc


Data Sheet
Install and Operating Manual

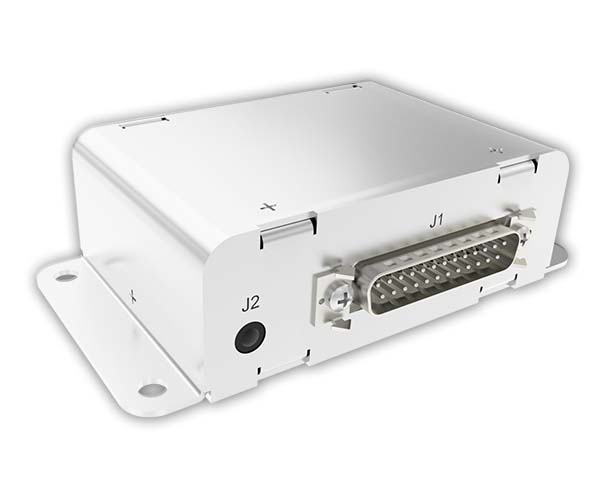

JA34-001

Universal Adapter - Radio

Mic Input: 250 mVrms


RX Input: 1V to 10 Vrms


Mic Output: 0.01 to 1Vrms into 150 ohms


RX Output: 1 to 8 Vrms into 600 ohms


Relay Output: DPDT


Weight: 0.63 lb. [0.30 kg] Max.


Power: 18 to 30Vdc


Data Sheet
Install and Operating Manual

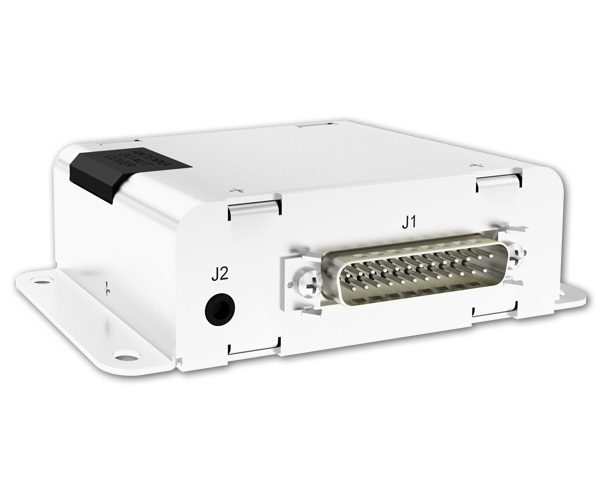

JA34-BT1

Universal Adapter - Radio and Bluetooth

Mic Input: 250 mVrms


RX Input: 1.5 to 10 Vrms


Mic Output: 0.01 to 0.62 Vrms into 150 ohms


or 0.01 to 0.325 Vrms into 8 ohms


RX Output: 2.5 Vrms into 600 ohms


Bluetooth Profiles: A2DP (Music sink) and


HFP1.5 (Hands Free)


Weight: 0.43 lb. [0.20 kg] Max. / Power: 18 to 30Vdc

Data Sheet
Install and Operating Manual

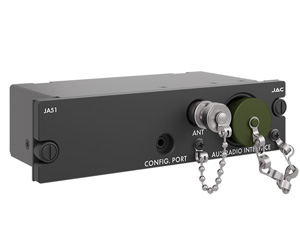

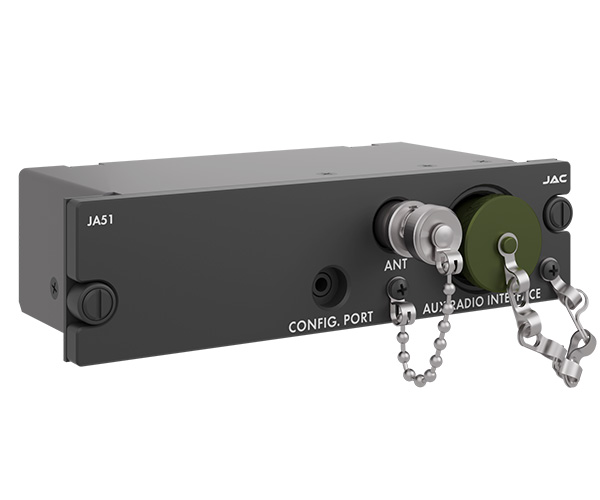

JA51-002

Radio Interface Panel

The JA51-002 radio interface panel allows rapid connection of a non-aviation radio to an aircraft audio system.


The features of the JA34-001 Universal Radio Adapter are integrated into the JA51-002 allowing audio signal levels to be made compatible.


Antenna connection is also incorporated.






Data Sheet
Install and Operating Manual

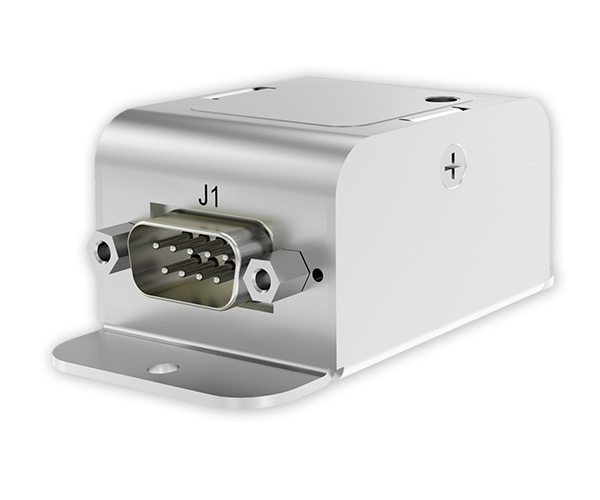

JA52-001

Microphone Bias Circuit

High Impedance Mic. to Low Impedance Mic.


The JA52-001 provides Mic. Bias voltage to interface with a low impedance intercom system.


Other applications including radio receive attenuation or adding another ICS microphone can be used.






Data Sheet
Install Manual
